Power Line Fittings · ASTM A153 · IEC 60120

Power Line Fittings

Hot-dip galvanized forged-steel and aluminium hardware for transmission and distribution lines: ball-and-socket, clevis, yokes, suspension clamps, tension clamps, armour rods, spacers and dampers. ASTM A153 zinc coating, IEC 60120 / 60471 / 61284 dimensions — drop-in compatible with any disc or composite insulator string.

Get free quote in 24h

End fittings, conductor hardware, and protection

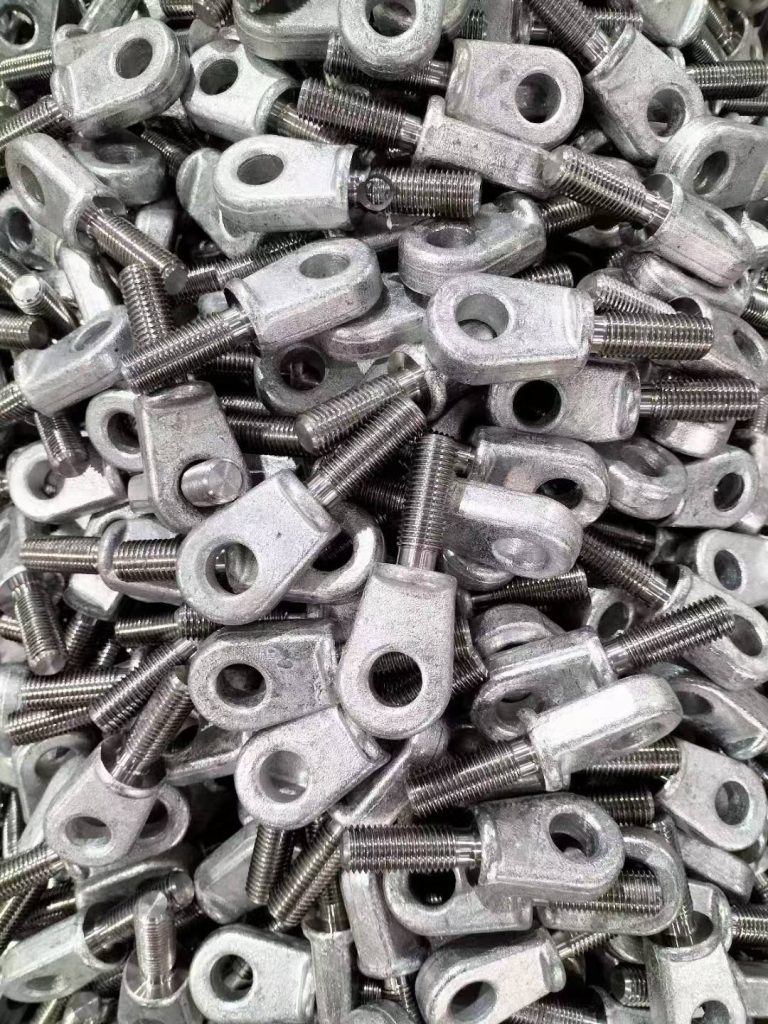

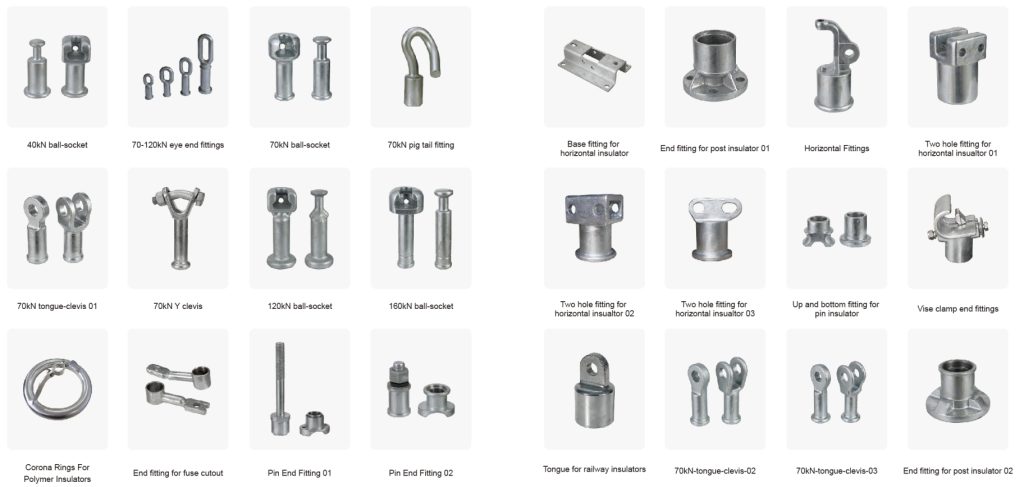

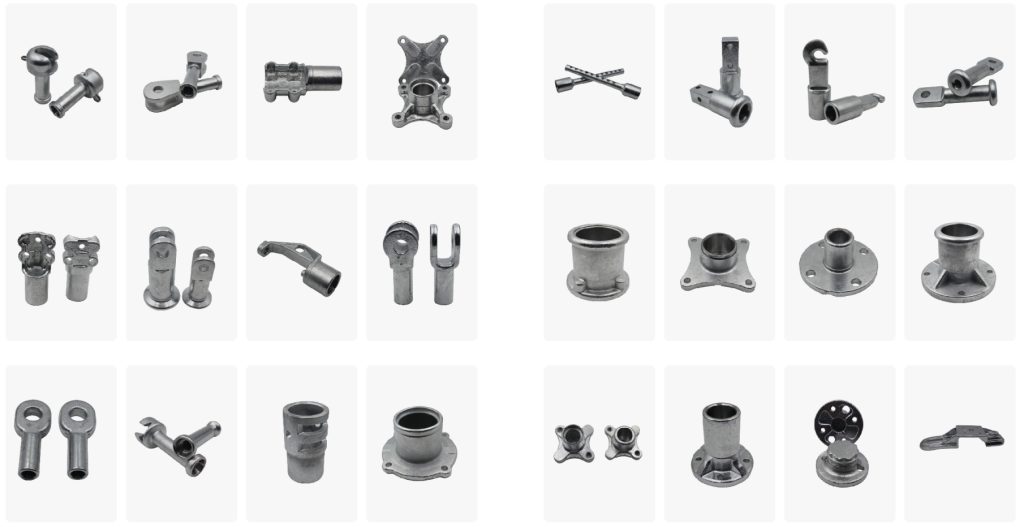

Ball, socket, clevis, eye

Cap-and-pin end fittings per IEC 60120 / 60471. Sizes 11, 16, 20, 24, 28 mm ball. WLL 40 – 550 kN.

Yoke plates & link fittings

Twin / quadruple yoke plates, extension links and turnbuckles for double / quadruple strings.

Suspension & trunnion clamps

Envelop / trunnion / U-bolt suspension clamps for ACSR, AAAC and ACFR conductors 16 – 1280 mm².

Bolted & wedge tension clamps

Bolted (NEMA) and preformed wedge tension clamps for dead-end positions; armour rods supplied.

Preformed armour rods

Preformed aluminium armour rods, line guards and vibration dampers — match the conductor diameter.

Bundle spacers & dampers

Spacer-dampers for 2-, 4-, 6- and 8-bundle conductors up to 1000 kV. Stockbridge dampers.

why choose us

Factory-Direct OEM Manufacturer Since 2006

Based in Jiangsu, we operate a 35,000 m² vertically-integrated plant covering forging, machining, hot-dip galvanizing and assembly. Every batch is traceable by heat number and accompanied by mechanical-test and zinc-coating certificates.

Get Started

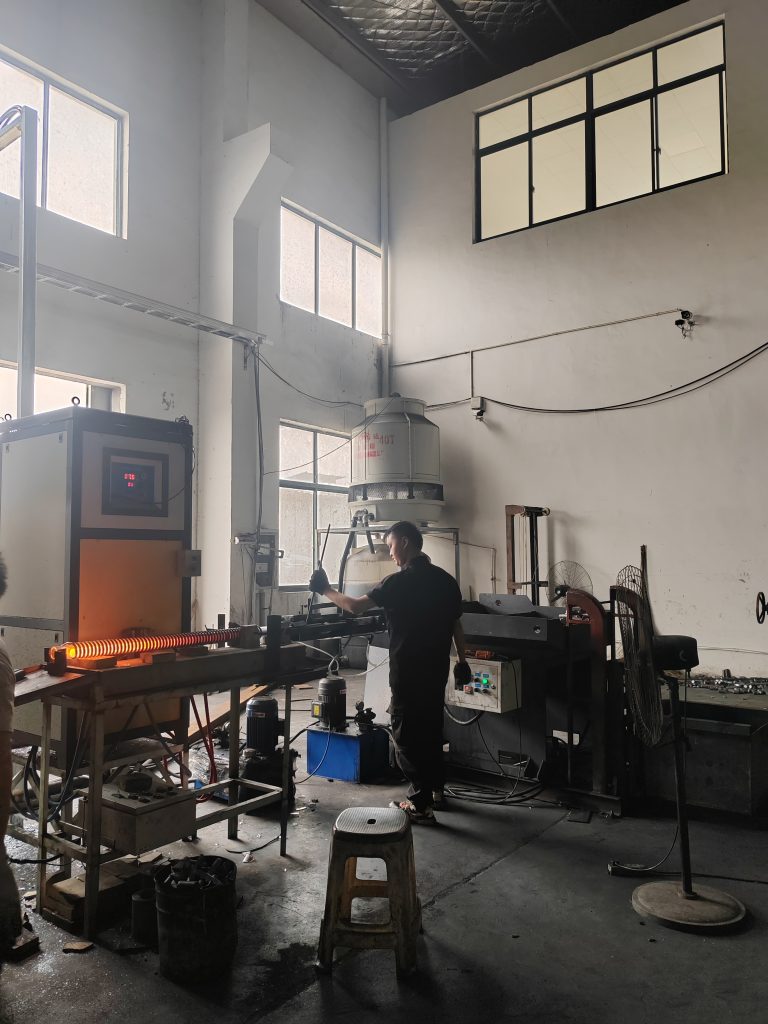

Power fittings processing and production workshop

We supply an extensive selection of pole and drop-line fittings, with custom options available. Known variously as utility pole hardware or aerial drop gear, our lineup covers everything from lashing/span clamps and cable drive rings to guy grips, pole steps, strand vises, pole bands, metal clips and ADSS dead-ends. This range is huge — just ask and we’ll provide it.

Get a quote now

Match your string hardware to your insulator

Insulator SML	Ball size (IEC 60120)	Clevis pin (IEC 60471)	Common yoke plate
40 – 70 kN	11 / 16 mm	16 mm	2-hole
100 – 120 kN	16 mm	16 / 19 mm	2-hole / 4-hole
160 – 210 kN	20 mm	19 / 22 mm	2-hole / 4-hole
300 kN	20 / 24 mm	22 mm	4-hole
420 – 550 kN	24 / 28 mm	22 mm	4-hole

Frequently Asked Questions

What’s the difference between ball-socket and tongue-clevis fittings?

Ball-socket (ball & socket) fittings use a clevis and tongue to connect insulators with a locking pin — preferred for transmission lines because they allow rotation during installation. Tongue-clevis fittings use a more compact bolted connection — preferred for substation and dead-end applications. Both are IEC 60120 compliant.

Can you customize insulator end fittings to my drawing?

Yes. Send your mechanical drawing, SML load, creepage distance and matching hardware. Our engineering team will confirm feasibility, recommend material (forged steel, ductile iron, malleable iron or aluminum alloy) and provide a quotation within 24 hours. Standard lead time is 15–30 days.

What material grades do you offer for power line fittings?

We offer forged steel (ASTM A668 / A668M), ductile cast iron (ASTM A536 Grade 65-45-12), malleable iron (ASTM A47), and aluminum alloy (ASTM B26 / B26M). Surface treatments include hot-dip galvanizing (ASTM A153), Dacromet coating, and epoxy powder coating for corrosion resistance.

Do your fittings meet IEC and ANSI standards?

Yes. Our fittings are manufactured per IEC 60120 (dimensional standard for ball and socket couplings) and ANSI C29 (American National Standard for insulators). Test certificates (mill certificates, mechanical test reports, galvanizing thickness reports) are provided with every shipment.

What is the difference between ball-socket and tongue-clevis power line fittings?

Ball-and-socket fittings use a spherical joint locked with a W-cotter or R-clip per IEC 60120. They provide flexiblearticulation and are ideal for insulator strings that are frequently assembled, disassembled or angled (suspensionstrings, jumper loops). Tongue-clevis fitings slide a flat tongue into a clevis fork and secure with a split pin per IEC60471, delivering higher shear strength for tension/ dead-end applications. Both families are available in 11/16/20
/24 /28 mm ball sizes and matching clevis pin diameters, with mechanical loads from 40 kN up to 550 kN SML.

What material grades and galvanizing are used for your fittings?

Ferrous fitings are forged or machined from medium-carbon steel (Q235B, 35#, 40#) or alloy steel (40Cr, 35CrMo)
for high-strength items. Non-magnetic and current-carrying parts use aluminum ally 6061-T6 or ZL101A. All steelparts are hot-dip galvanized per ASTM A153 Class B with an average zinc coating 85 um, plus stainless options(304 / 316) for coastal or corrosive environments. Every shipment is accompanied by mechanical-test reports(tensile, hardness, charpy), dimensional reports, and coating thickness records traceable to the heat number.
